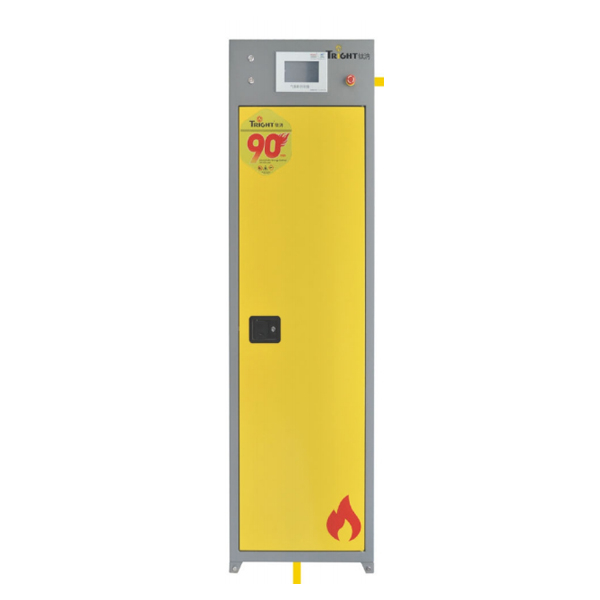

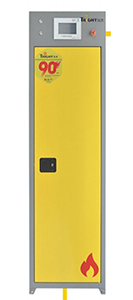

Tright Yellow 90 Minute Intelligent Gas Cylinder Safety Cabinets

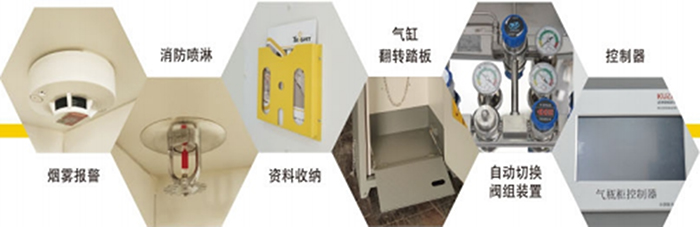

Product Features
Gas cylinder fixing: adjustable gas cylinder fixing device, flexible to adapt to a variety of conventional size gas cylinders.
Fire and explosion prevention: developed and designed according to EN14470-2 standard, multi-layer cabinet, excellent explosion and fire prevention effect.
Intelligent detection and alarm linkage: built-in smoke alarm, alarm when gas leaks. Gas leaks automatically cut off the gas source, the left and right cylinders automatically switch gas supply, automatic exhaust function, and emergency cut-off button.
Ventilation fire arrester: when the fire arrester senses that the ambient temperature reaches 70℃, the valve port automatically closes to ensure the safety of the gas cylinder.
Convenient operation: a cylinder flip pedal is provided at the bottom to avoid collision with the gas cylinder, which is convenient for loading and unloading the gas cylinder cart.
Data storage: built-in SDS information storage box, convenient for storing gas cylinder related data information.

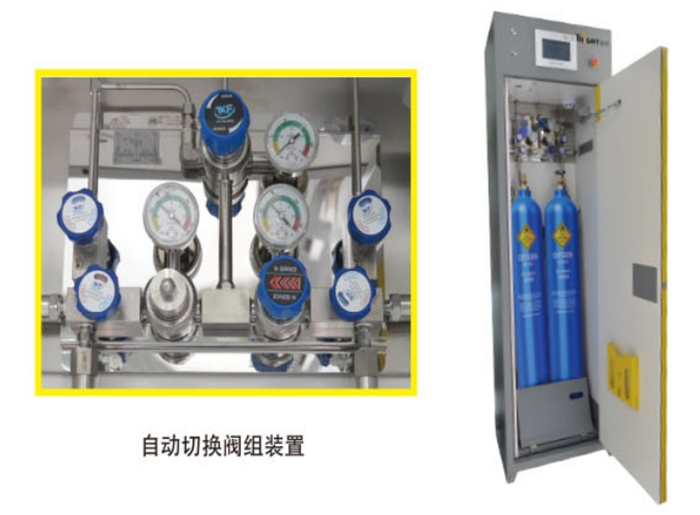

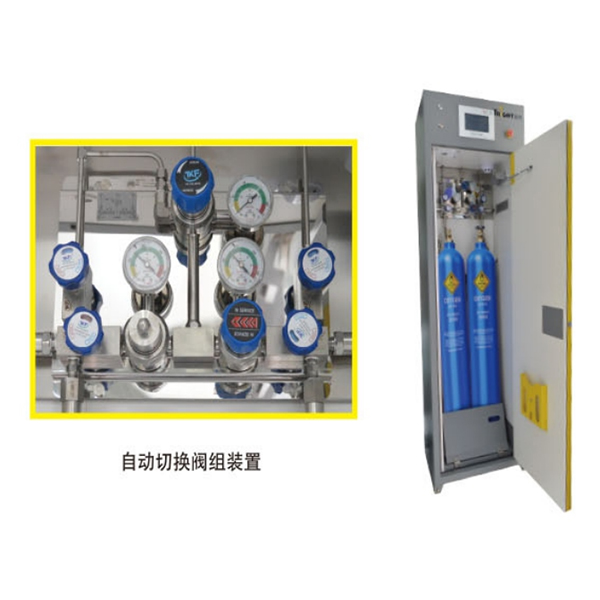

Direct gas supply: can be equipped with TKF semi-automatic switching pressure reducing valve group to achieve direct gas supply.


Product name | 90 Minute Gas Cylinder Safety Cabinets | Intelligent 90 Minute Gas Cylinder Safety Cabinets |
Model | TENG3020 | TENG3020I |
Display screen | / | 7-inch |
Dimensions (width x depth x height) | 750*500*2150mm | |
Working voltage | AC220V±15%50Hz | |
Ambient temperature | 0℃~+55℃ | |
Humidity range | <90%RH | |
Alarm mode | Sound alarm (at a distance of 1 meter, the sound pressure level is above 75dB) | Sound alarm (at a distance of 1 meter, the alarm sound pressure level is above 75dB) Light alarm |
Connect ventilation duct Exhaust diameter 75mm | ||
Signal output | / | 4-20mA |
Number of stored gas cylinders | 1~2 | |
Movement mode | 50mm forklift slot | |
