TF0530Y
Tright
Name | Model | Volume(gallon/L) | Color | Product dimension (width * depth * height mm) | Cabinet door type | Number of shelves | Shelves loading capacity |
4 gallon flammable safety cabinet | TF0040Y | 4/15 | Yellow | 430×430x560 | Single door | 1 | 50 |
4 gallon combustible safety cabinet | TF0040R | 4/15 | Red | 430×430x560 | Single door | 1 | 50 |
4 gallon corrosive safety cabinet | TF0040B | 4/15 | Blue | 430×430x560 | Single door | 1 | 50 |
12 gallon flammable safety cabinet | TF0120Y | 12/45 | Yellow | 590x460x890 | Single door | 1 | 50 |
12 gallon combustible safety cabinet | TF0120R | 12/45 | Red | 590x460x890 | Single door | 1 | 50 |
12 gallon corrosive safety cabinet | TF0120B | 12/45 | Blue | 590x460x890 | Single door | 1 | 50 |
22 gallon flammable safety cabinet | TF0220Y | 22/83 | Yellow | 600x460×1650 | Single door | 3 | 50 |
22 gallon combustible safety cabinet | TF0220R | 22/83 | Red | 600x460×1650 | Single door | 3 | 50 |
22 gallon corrosive safety cabinet | TF0220B | 22/83 | Blue | 600x460×1650 | Single door | 3 | 50 |
30 gallon flammable safety cabinet | TF0300Y | 30/114 | Yellow | 1090x460x1120 | Double door | 1 | 100 |
30 gallon combustible safety cabinet | TF0300R | 30/114 | Red | 1090x460x1120 | Double door | 1 | 100 |
30 gallon corrosive safety cabinet | TF0300B | 30/114 | Blue | 1090x460x1120 | Double door | 1 | 100 |
45 gallon flammable safety cabinet | TF0450Y | 45/170 | Yellow | 1090x460x1650 | Double door | 2 | 100 |
45 gallon combustible safety cabinet | TF0450R | 45/170 | Red | 1090x460x1650 | Double door | 2 | 100 |
45 gallon corrosive safety cabinet | TF0450B | 45/170 | Blue | 1090x460x1650 | Double door | 2 | 100 |

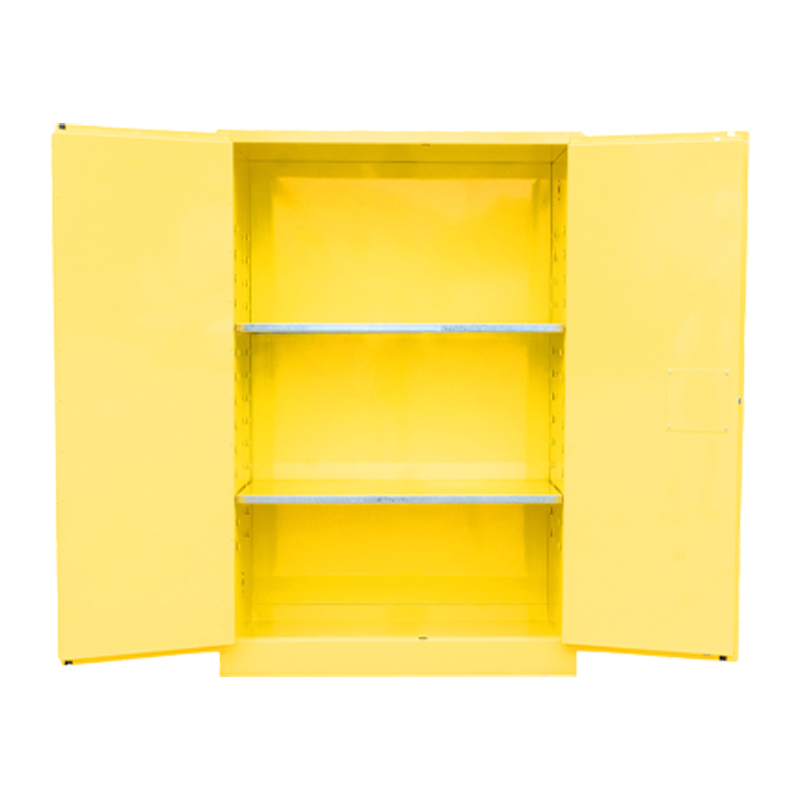

53 gallon flammable safety cabinet | TF0530Y | 53/200 | Yellow | 1090x460x1800 | Double door | 3 | 100 |
53 gallon combustible safety cabinet | TF0530R | 53/200 | Red | 1090x460x1800 | Double door | 3 | 100 |
53 gallon corrosive safety cabinet | TF0530B | 53/200 | Blue | 1090x460x1800 | Double door | 3 | 100 |
60 gallon flammable safety cabinet | TF0600Y | 60/227 | Yellow | 860x860×1650 | Double door | 2 | 100 |
60 gallon combustible safety cabinet | TF0600R | 60/227 | Red | 860x860×1650 | Double door | 2 | 100 |
60 gallon corrosive safety cabinet | TF0600B | 60/227 | Blue | 860x860×1650 | Double door | 2 | 100 |
90 gallon flammable safety cabinet | TF0900Y | 90/340 | Yellow | 1090x860x1650 | Double door | 2 | 100 |
90 gallon combustible safety cabinet | TF0900R | 90/340 | Red | 1090x860x1650 | Double door | 2 | 100 |
90 gallon corrosive safety cabinet | TF0900B | 90/340 | Blue | 1090x860x1650 | Double door | 2 | 100 |
110 gallon flammable safety cabinet | TF1100Y | 110/410 | Yellow | 1500x860x1650 | Double door | 2 | 100 |
110 gallon combustible safety cabinet | TF1100R | 110/410 | Red | 1500x860x1650 | Double door | 2 | 100 |
110 gallon corrosive safety cabinet | TF1100B | 110/410 | Blue | 1500x860x1650 | Double door | 2 | 100 |
Under-counter 22 gallon flammable safety cabinet | TLF889Y | 22/83 | Yellow | 889x550×665 | Single door | 1 | 100 |
Under-counter 22 gallon combustible safety cabinet | TLF889R | 22/83 | Red | 889x550×665 | Single door | 1 | 100 |
Under-counter 22 gallon corrosive safety cabinet | TLF889B | 22/83 | Blue | 889x550×665 | Single door | 1 | 100 |
Under-counter 24 gallon flammable safety cabinet | TLF889HY | 24/90 | Yellow | 889x550×889 | Single door | 1 | 100 |
Under-counter 24 gallon combustible safety cabinet | TLF889HR | 24/90 | Red | 889x550×889 | Single door | 1 | 100 |
Under-counter 24 gallon corrosive safety cabinet | TLF889HB | 24/90 | Blue | 889x550×889 | Single door | 1 | 100 |
Flammable safety cabinet’s feature
1. The cabinet body is welded with 1.2mm bare steel plate (before spraying), and the surface is flat and free of welding spots and welds.
2. The cabinet body surface is electrostatically sprayed with epoxy resin high-gloss powder, with a smooth surface, high reflectivity, uniform spraying, no burrs, no cracks, no wrinkles, rust-proof and moisture-proof.
3. Double-layer cabinet structure, two layers of galvanized steel plates with a 38mm fireproof and heat-insulating layer.
4. The shelves are integrally formed without welding, flat and without grooves.
5. The height of the shelves can be adjusted every 7.6cm, and the structural shelf support is safe and firm.
6. The left and right cabinet doors are completely fitted with a no-door gap design, volatile gases are not easy to spread, and external fire sources are not easy to enter.
7. The long row of stainless steel hinges opens smoothly, and there is no obvious gap between the hinges and the door.
8. The cabinet body is equipped with ventilation holes and independent flame arresters at the lower left and upper right, which can prevent the flame outside the cabinet from entering the cabinet through the airway in the event of a fire. The upper and lower external ventilation systems can be selected according to the density of the volatile gas of the chemical.
9. The three-point linkage lock ensures that the cabinet door is completely closed, with an anti-static design. It can be equipped with two independent locks to achieve double-person double-lock management
10. The cabinet body is equipped with an electrostatic grounding port and equipped with pressure riveting screws to facilitate the connection of the electrostatic grounding wire
11. The cabinet door is affixed with a warning reflective film label, which has high reflectivity, good visual effect, UV resistance, and does not fall off or fade.
