EN14470-1:2023 was prepared by CEN/TC332 "Laboratory Equipment" Technical Committee and approved by the European Committee for Standardization. The standard sets requirements for the structure, resistance to external fire, and fire performance of fireproof safety cabinets used in laboratories to store flammable liquids, clarifies the fire protection level and fire test requirements, and is currently one of the important standards in the field of safety cabinets in the world.

According to the time when the temperature rise does not exceed 180K in the fire test, the cabinets are divided into 30-minute cabinets, 60-minute cabinets, and 90-minute cabinets. A real fire test must be passed to meet the standard.

In the event of a fire, the safety cabinet should ensure that the items in the cabinet will not cause any additional fire risk or fire spread for at least 30 minutes. There are also detailed requirements for the cabinet door, that is, the cabinet door should be able to be fully and automatically closed from any position within 20 seconds from the time the cabinet door is released.

The world's first 120 minutes fire huan certification 1049℃ high temperature baking test

120-minute real fire burning test

Test preparation      →     Entering the high temperature furnace  →  Continuous combustion       →        Furnace opening site

EN Flammable Safety Cabinet Features:

1. The whole cabinet is electrostatically sprayed, and the outer surface is corrosion-resistant, scratch-resistant and impact-resistant.

2. There is a gas circulation channel inside the cabinet, and there are 1 inlet and outlet vents on the top of the cabinet. The vents are equipped with automatic temperature sensing devices.

3. After passing the EN1363-1 fire resistance limit test, the highest temperature of the 14 temperature measurement points in the cabinet after the EN fire-resistant safety cabinet burns in the combustion furnace for 120 minutes is far lower than the upper limit of the temperature required by the international standard, meeting the EN14470-1:2023 standard.

4. The cabinet doors have passed the 40,000 reciprocating cycle opening and closing test.

5. The two cabinet doors are equipped with automatic temperature sensing and closing linkage devices. When the ambient temperature reaches about 50°, the temperature sensing device automatically works, and the cabinet doors opened on both sides can be automatically closed within 20 seconds.

6. It has its own inlet and outlet for air circulation, and can be connected to an external ventilation duct or circulating air filter. When the ambient temperature around the cabinet reaches about 70°, the temperature sensing device automatically works, and the two inlet and outlet flame arresters automatically close to prevent external fire sources from entering the cabinet.

7. The gap between the cabinet and the cabinet door is adhered with special fireproof, expansion and sealing materials, which automatically expand and fill the gap in the event of a fire, preventing external flames and heat from entering the cabinet.

8. It is standardly equipped with 2 adjustable shelves, and the cabinet can accommodate up to 5 shelves, forming 6 layers of storage space.

9. There are electrostatic grounding ports at the bottom of both sides of the cabinet, which can be equipped with pressure riveting screws to facilitate the connection of electrostatic grounding wires.

10. There is a forklift slot at the bottom of the cabinet, and the net height of the forklift slot from the ground is not less than 80mm. The base is detachable, suitable for small spaces, and easy to move and transport.

11. High-quality labels with good reflective warning performance and UV resistance are used. They comply with EN14470-1:2023 and EN ISO 7010 standards, making them easy for firefighters to identify in the event of a fire.

A hidden handle on the door panel for easy dragging

Laboratory technician can take chemicals from either side

Multi-layer classified storage equipment has anti-dumping protection

Press the button to open and close the cabinet door automatically without manual pulling

The bottom is equipped with a hidden forklift slot for easy movement

The design is simple and elegant, coordinated with the experimental equipment

Rational use of laboratory space

Complies with EN14470-1 standard to effectively protect the safety of chemicals

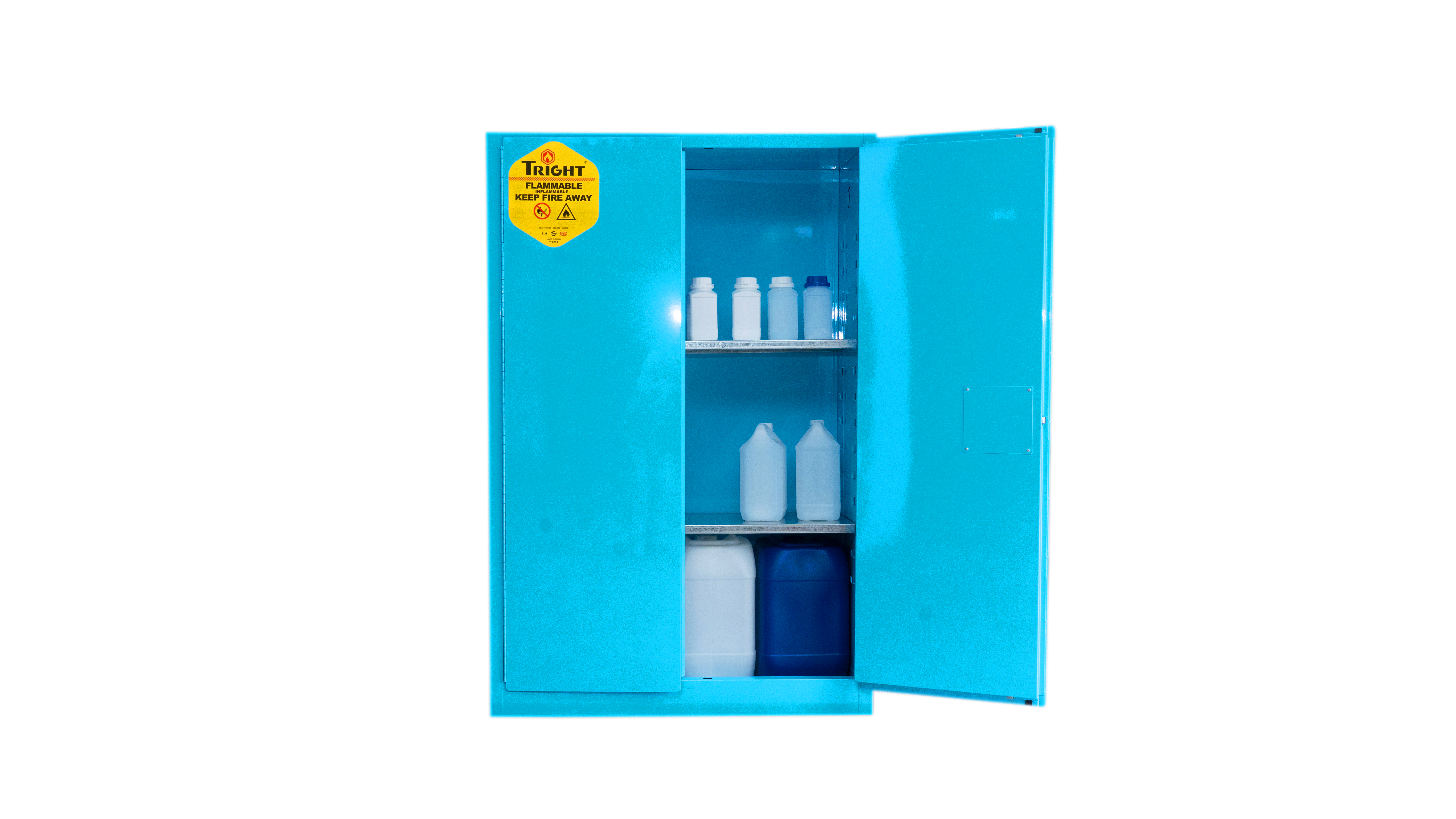

Flammable cabinet / Combustible cabinet / Corrosive Cabinet

Flammable safety cabinet’s feature

1. The cabinet body is welded with 1.2mm bare steel plate (before spraying), and the surface is flat and free of welding spots and welds.

2. The cabinet body surface is electrostatically sprayed with epoxy resin high-gloss powder, with a smooth surface, high reflectivity, uniform spraying, no burrs, no cracks, no wrinkles, rust-proof and moisture-proof.

3. Double-layer cabinet structure, two layers of galvanized steel plates with a 38mm fireproof and heat-insulating layer.

4. The shelves are integrally formed without welding, flat and without grooves.

5. The height of the shelves can be adjusted every 7.6cm, and the structural shelf support is safe and firm.

6. The left and right cabinet doors are completely fitted with a no-door gap design, volatile gases are not easy to spread, and external fire sources are not easy to enter.

7. The long row of stainless steel hinges opens smoothly, and there is no obvious gap between the hinges and the door.

8. The cabinet body is equipped with ventilation holes and independent flame arresters at the lower left and upper right, which can prevent the flame outside the cabinet from entering the cabinet through the airway in the event of a fire. The upper and lower external ventilation systems can be selected according to the density of the volatile gas of the chemical.

9. The three-point linkage lock ensures that the cabinet door is completely closed, with an anti-static design. It can be equipped with two independent locks to achieve double-person double-lock management

10. The cabinet body is equipped with an electrostatic grounding port and equipped with pressure riveting screws to facilitate the connection of the electrostatic grounding wire

11. The cabinet door is affixed with a warning reflective film label, which has high reflectivity, good visual effect, UV resistance, and does not fall off or fade.

Strong Corrosive Safety Cabinet

The strong corrosive safety cabinet is welded with galvanized steel plates as a whole, and polypropylene plates are embedded inside. It has excellent properties of strong acid and alkali resistance and corrosion resistance. The product has anti-theft function, equipped with mechanical anti-theft locks that meet the GA/T73 standard, two-person receiving and sending, and two-person management, which fully complies with GA1511-2018 "Security Prevention Requirements for Storage Places of Explosive and Dangerous Chemicals" and "Regulations on the Safety Management of Dangerous Chemicals". It is suitable for storing explosive and dangerous chemicals such as acids, nitrates, chlorates, perchlorates, dichromates, peroxides and superoxides, flammable reducing agents, and nitro compounds.

The explosives in GB6944-2012 Dangerous Goods Classification and Product Name Number include 6 major substances and articles. The Ministry of Public Security has compiled the "List of Explosive and Dangerous Chemicals" (2017 Edition) in accordance with Article 23 of the "Regulations on the Safety Management of Dangerous Chemicals" (State Council Order No. 591). GA1511-2018 "Security Prevention Requirements for Storage Places of Explosive and Dangerous Chemicals" issued by the Public Security Administration of the Ministry of Public Security clearly stipulates the control requirements for chemicals listed in the "List of Explosive and Dangerous Chemicals" compiled by the Ministry of Public Security:

4 Small-dose storage places: storage rooms or storage cabinets used by teaching, scientific research, medical, testing and other units, where the total amount of all explosive and dangerous chemicals does not exceed 50kg.

7.5 Anti-theft security doors should be installed at the entrances and exits of small-dose storage places, or explosive and dangerous chemicals should be stored in special storage cabinets in the room.

7.9 Special storage cabinets should have anti-theft functions, meet the requirements of double-person double-lock management, and install mechanical anti-theft locks, which should comply with the relevant provisions of GA/T73.

Under-counter Strong Corrosive Safety Cabinet

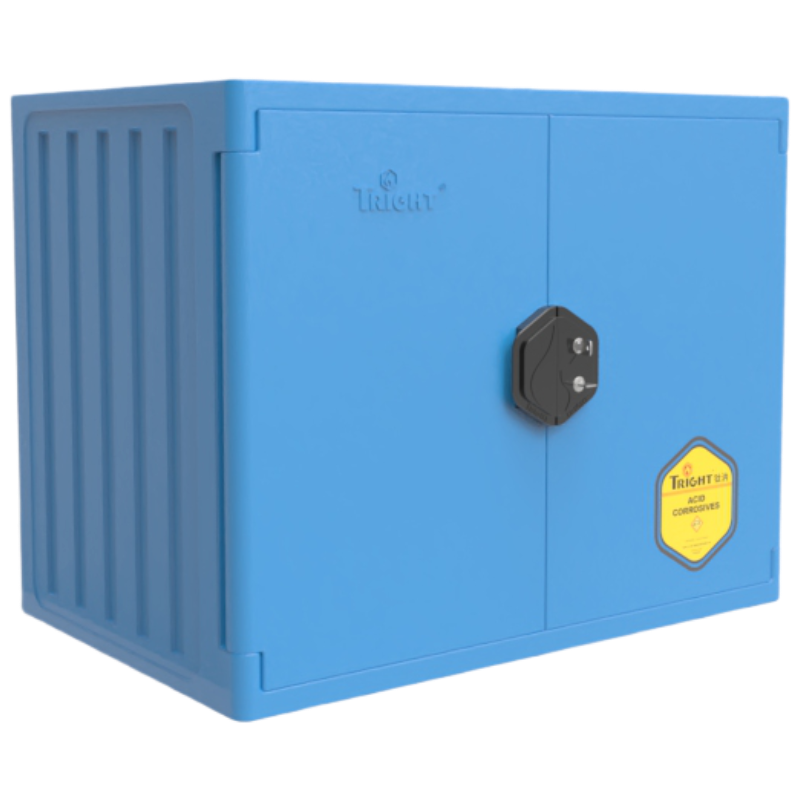

PE strong corrosive safety cabinet

PE strong corrosive safety cabinet (also known as strong acid and alkali cabinet) is formed by one-step integral molding of PE particles, and is resistant to strong acid and alkali chemicals. The whole cabinet adopts a double-layer structure, with good load-bearing performance, moisture resistance, drop resistance and impact resistance. It is suitable for use alone in various laboratories, and can also be placed in a fume hood or under a laboratory bench for supporting use.

Laboratory Under-counter Flammable Safety Cabinets have complete specifications, rich products, and various color panels. They can be adapted to various mainstream laboratory fume hoods (such as 1200cm, 1500cm, 1800cm), operating tables, workbenches, and experimental tables. They can be customized according to actual needs with different materials, sizes, specifications, and functions.

Under-counter Flammable Safety Cabinets are safety cabinets that use the space under the workbench to safely store chemicals. This chemical safety cabinet is convenient for workers to store and retrieve chemicals nearby, saving the time of workers going to and from the chemical warehouse. This product is usually used as a space under a fume hood, laboratory bench, etc. to safely store chemicals.

Under-counter Flammable Safety Cabinets play an irreplaceable role in multiple scenarios such as laboratories, factories, medical institutions, educational institutions, and warehousing and logistics due to its efficient safety performance and flexible application methods.

Toxic Safety Cabinet

Toxic Safety Cabinets are welded steel plates with PP plates embedded inside and equipped with two GA locks certified by the police. The product has anti-theft function and can be sent and received by two people and managed by two people. It is suitable for storing conventional dangerous chemicals that are easy to make drugs, such as the first, second and third categories (toluene, acetone, sulfuric acid and hydrochloric acid).

Toxic safety cabinet complies with the "Regulations on the Management of Narcotic Drugs" and is widely used in scientific research institutes, universities, medical institutions, pharmaceutical companies and other units to store toxic substances such as precursor chemicals, narcotic drugs, and the first category of psychotropic drugs.

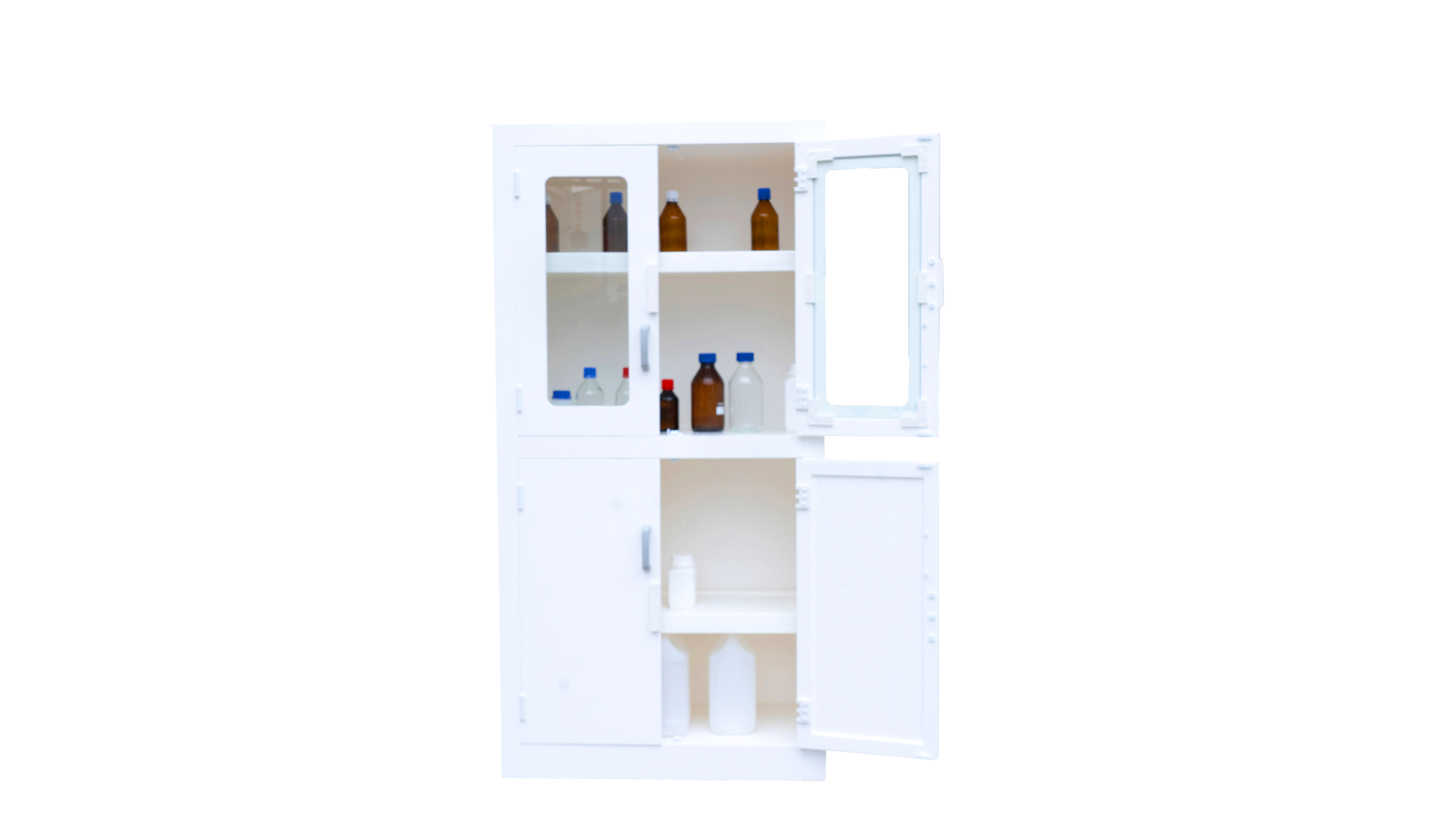

PP Safety Cabinet

PP medicine safety cabinet is made of polypropylene material folded and welded. The overall appearance is simple and beautiful, the internal structure is stable and impact-resistant, resistant to strong acid and alkaline chemicals, non-corrosive and non-wear, and double-person double-mirror safety and compliance management.

Anti-corrosion double lock	Anti-slip partition	Safety buckle lock	Multi-door compartment design

Combination Safety Cabinets effectively solve the problem of safe storage of chemicals with many categories and small quantities. According to actual needs, 1-3 layers with a maximum of 9 spaces can be stacked and placed to meet the needs of multiple people for use and management.

Combination Safety Cabinet

Intelligent Gas Cylinder Safety Cabinets

Intelligent Gas Cylinder Safety Cabinets are developed and manufactured with reference to GBT345252017 and GB3836201. They have passed the national instrument explosion-proof test and can store 40L, 10L, 8L, and 4L standard gas cylinders. They are equipped with explosion-proof point-type flammable gas detectors, explosion-proof sound and light alarms, explosion-proof axial flow fans, and gas supply panel systems (which can directly supply gas without moving gas cylinders), etc., to effectively prevent the risk of gas leakage.

Universal probe can detect gas

Combustible gas with density greater than or equal to air: liquefied petroleum gas, benzene, toluene, xylene, butane, isobutane, pentane, octane, cyclohexane, methanol, ethanol, isopropanol, acetaldehyde, ether, ethyl acetate, cyclohexane, n-propylamine, triethylamine, dimethylformamide, tetrahydrofuran, acetone, cyclohexanone, arsenic, petroleum ether, ethylene glycol methyl ether gasoline, diesel, turpentine, volatile gas of banana water less than or equal to air density: natural gas, artificial coal gas, carbon monoxide, hydrogen Other toxic and harmful gases require customized probes.

Oily Waste Can

Oily Waste Can is a kind of trash can specially designed to reduce the risk of fire. They are usually made of non-flammable or flame-retardant metal materials, and have special structures to limit the source of fire and prevent the spread of fire, such as self-closing barrel lid design and bottom with good heat dissipation. They are mainly used to store flammable waste, such as waste oil, rags, paper, etc., to reduce the risk of fire, especially in places with more flammable liquids and flammable solids, such as laboratories, production workshops, kitchens, etc. is a kind of trash can specially designed to reduce the risk of fire. They are usually made of non-flammable or flame-retardant materials, and have special structures to limit the source of fire and prevent the spread of fire, such as self-closing barrel lid design and bottom with good heat dissipation. They are mainly used to store flammable waste, such as waste oil, rags, paper, etc., to reduce the risk of fire, especially in places with more flammable liquids and flammable solids, such as laboratories, production workshops, kitchens, etc.

Product features:

Prevent fire risks, completely close, isolate oxygen, and prevent combustion

Self-closing barrel cover, the barrel cover is completely closed under normal circumstances

Heat dissipation, moisture-proof, anti-corrosion, the air circulation design at the bottom of the barrel prevents heat accumulation, and has ventilation, heat dissipation and anti-rust effects

Foot switch, no need to bend over, lightly step on the wide and thick foot pedal to open the barrel cover, comfortable and labor-saving

Convenient to move and dump items

TUV Rheinland certification·world's first

Tright fire-resistance cabinet products have successfully passed the 120-minute fire-resistance combustion test of the EN14470-1:2023 standard. According to the records of the TÜV Rheinland query system, the Tright fire-resistance safety cabinet is the world's first product to pass the 120-minute fire-resistance combustion test at one time, breaking the industry record and fully proving Tright's leading position in fire safety performance.
