TG1011
Tright
Intelligent Gas Cylinder Safety Cabinets are developed and manufactured with reference to GBT345252017 and GB3836201. They have passed the national instrument explosion-proof test and can store 40L, 10L, 8L, and 4L standard gas cylinders. They are equipped with explosion-proof point-type flammable gas detectors, explosion-proof sound and light alarms, explosion-proof axial flow fans, and gas supply panel systems (which can directly supply gas without moving gas cylinders), etc., to effectively prevent the risk of gas leakage.
Name | Model | Number of gas cylinders (bottles) | Color | Product dimension (width * depth * height mm) | Cabinet door type | Material | Note |
90 Minute Gas Cylinder Safety Cabinets | TENG3020 | 1/2 | Yellow | 750x500x2150 | Single door | Multilayer refractory material | Standard |
Intelligent 90 Minute Gas Cylinder Safety Cabinets | TENG3020I | 1/2 | Yellow | 750x500x2150 | Single door | Multilayer refractory material | Intelligent |

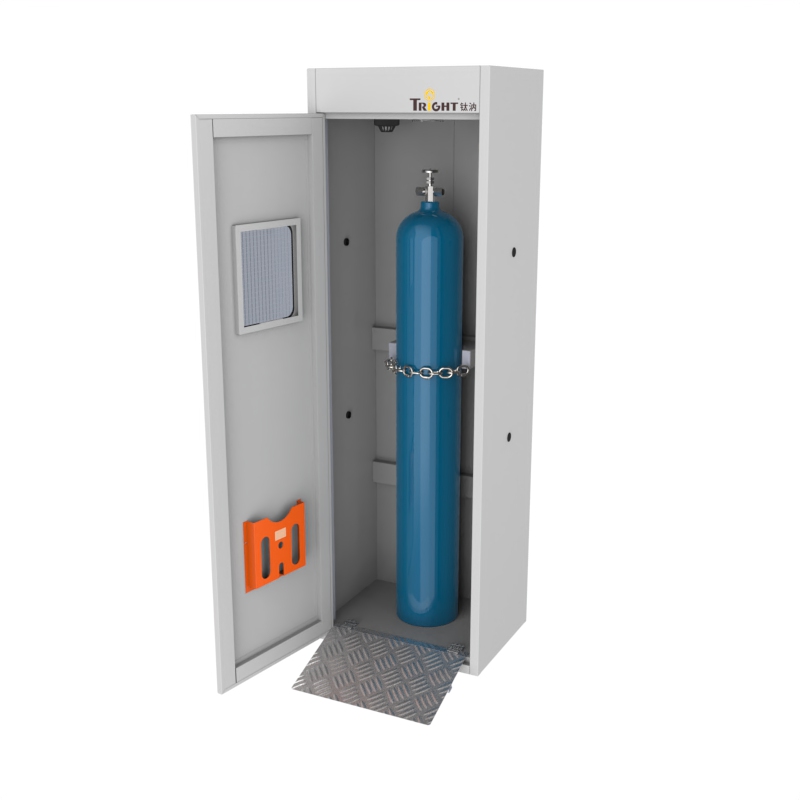

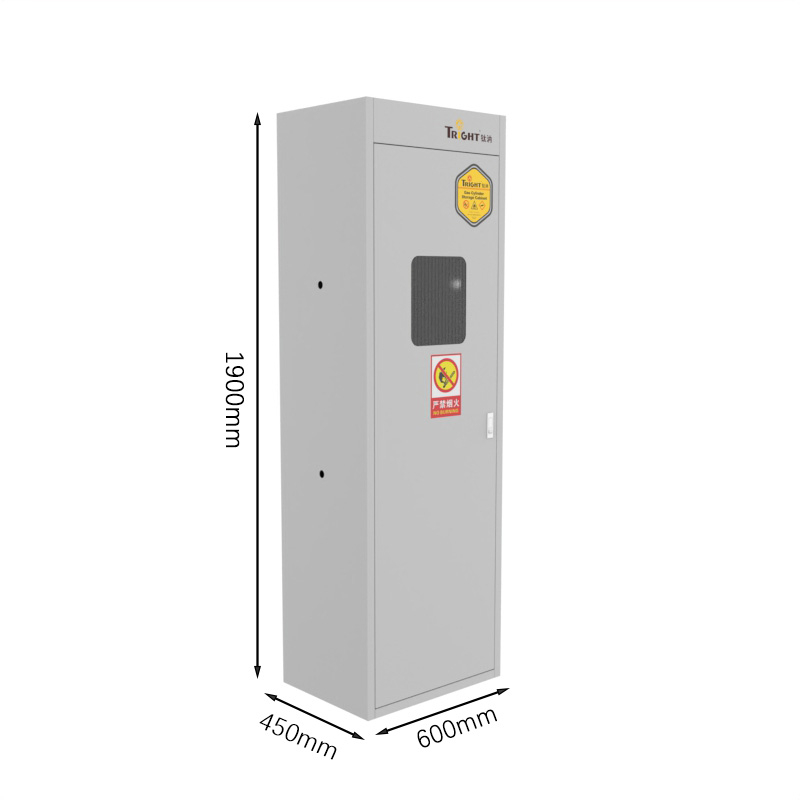

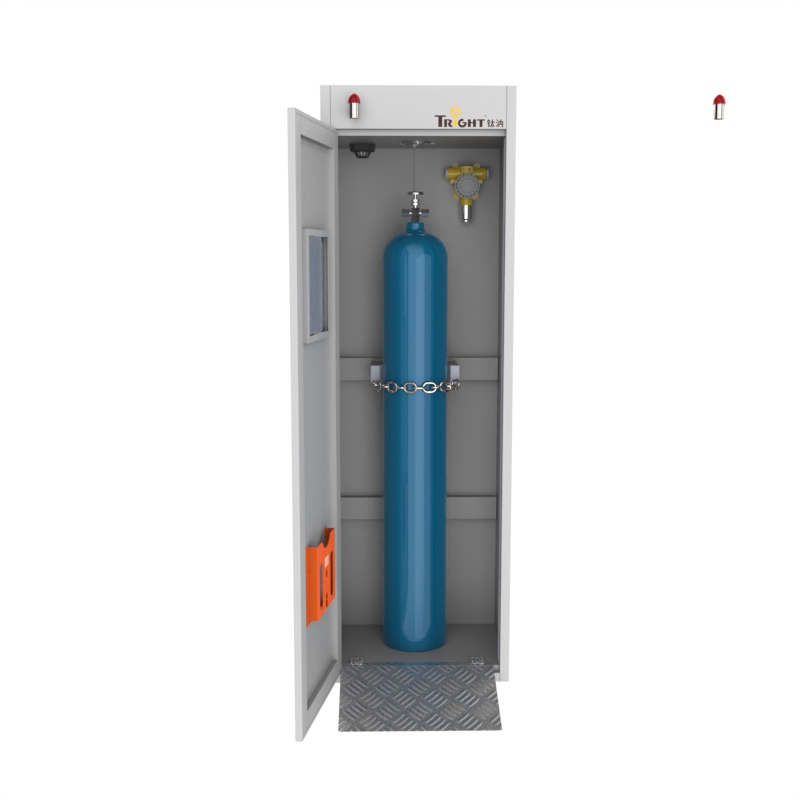

Intelligent 1 Gas Cylinder Safety Cabinets | TG0010 | 1 | Yellow | 600x450x1900 | Single door | Double layer steel plate | |
TG0010F | 1 | Yellow | 600x450x1900 | Single door | Double layer steel plate | Equipped with explosion-proof axial flow fan | |
Intelligent 2 Gas Cylinder Safety Cabinets | TG0020 | 2 | Yellow | 600x450x1900 | Double door | Double layer steel plate | |
TG0020F | 2 | Yellow | 600x450x1900 | Double door | Double layer steel plate | Equipped with explosion-proof axial flow fan | |
Intelligent 3 Gas Cylinder Safety Cabinets | TG0030 | 3 | Yellow | 600x460×1650 | Double door | Double layer steel plate | |
TG0030F | 3 | Yellow | 600x460×1650 | Double door | Double layer steel plate | Equipped with explosion-proof axial flow fan | |
1 Gas Cylinder Safety Storage Cabinets | TG1011 | 1 | Yellow | 500x450x1800 | Single door | Single layer steel plate | |
1 Gas Cylinder Storage Safety Cabinets | TG1021 | 2 | Yellow | 900x450x1800 | Double door | Single layer steel plate | |
1 Gas Cylinder Storage Safety Cabinets | TG1031 | 3 | Yellow | 1200x450x1800 | Double door | Single layer steel plate |
Universal probe can detect gas
Combustible gas with density greater than or equal to air: liquefied petroleum gas, benzene, toluene, xylene, butane, isobutane, pentane, octane, cyclohexane, methanol, ethanol, isopropanol, acetaldehyde, ether, ethyl acetate, cyclohexane, n-propylamine, triethylamine, dimethylformamide, tetrahydrofuran, acetone, cyclohexanone, arsenic, petroleum ether, ethylene glycol methyl ether gasoline, diesel, turpentine, volatile gas of banana water less than or equal to air density: natural gas, artificial coal gas, carbon monoxide, hydrogen Other toxic and harmful gases require customized probes.
Temperature | T1 | T2 | T3 | T4 | T5 | T6 |
IIA | Methane, toluene, methyl ester, ethane acetone, acrylic acid, benzene, styrene, carbon monoxide IIA, ethyl acetate, acetic acid, chlorpyrifos, methyl alcohol, ammonia | Propane, toluene, ethanol, ethylbenzene, propanol, propylene, butanol, butane, butyl acetate IIA, amyl acetate, cyclopentane | Pentane, amyl alcohol, ethane, ethanol, heptane, octane, cyclohexanol, turpentine, IIA naphtha, petroleum (including gasoline), fuel oil, tetrachloropentanol | Acetaldehyde, trimethylamine | / | Ethyl nitrite |
IIB | Propylene glycol, acrylonitrile, dimethyl ether, hydrogen fluoride city gas | Butadiene, ethylene oxide, ethylene, furan | Dimethyl ether, propylene oxide, hydrogen sulfide | Dibutyl ether, diethyl ether, ethyl methyl ether, tetrafluoroethylene | / | / |
IIC | Oxygen, water gas | Acetylene | / | Ethyl nitrate | Ethyl nitrate | / |
